VPO10 is a three-channel output converter, where the user can choose the actuation in current (4-20 mA) or discrete output with open collector (maximum current 400mA, 24 Vdc), which guarantees great application versatility.
It can be configured using EDDL and DTM-based tools available in the market or locally using a magnetic tool.

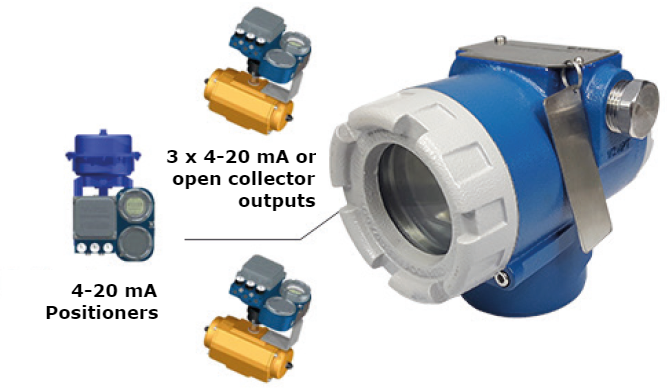

VPO10 is a converter that provides the easy connection of end elements such as control valve positioners and other final control elements to the Profibus systems. VPO10 generates, in proportion to the Profibus-PA setpoint signals, 4-20 mA outputs, via analog output funciotn blocks (AO), or allows actuations via open collector to the loads.
The converter is powered from 9 to 32 Vdc via bus and uses the Profibus PA communication protocol for configuration, calibration, monitoring and diagnostics.
It provides cost reduction of installation and design through the availability of three independent channels of current / open collector per converter.
The DTM Library for Profibus-PA devices can be found on:
Profibus-PA
| Accuracy |
0.1% |
| Supply Voltage / Quiescent Current |
9 to 32 Vdc, without polarity / 12 mA |
| Communication Protocol / Function Blocks | Profibus PA, according to IEC 61158-2 (H1), voltage mode 31.25 Kbits / s with bus power supply / 2 Analog Output Blocks (AO). |
| Certification in Hazardous Area |
Explosion-proof and Intrinsically Safe |
| Environmental Temperature Limits | -40 a 85°C |
| Configuration | Remote configuration through tools based on EDDL, FDT / DTM, as well as Android platform. Local configuration via magnetic key. |
| Indication | 5 digit LCD, rotary, multifunctional and with bargraph. |
| Mounting | In the field, directly on pipe with bracket Ø 2 " |
| Protection degree | IP67 |
| Output Load Limit | Outputs configured independently by the user: Signals 4-20mA: External Output Voltage 3-45 Vdc. Load (discrete drive): max. 400mA, 24Vdc. |
| Housing Material | Aluminum |
| Approximate Weight with Bracket | 1700g |
