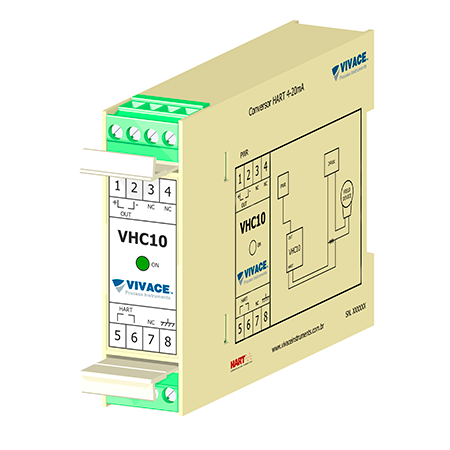

VHC10-P was projected to create an additional 4-20 mA output current channel, offering another analog monitoring to devices that do not own this feature (valve positioners, for instance) or that need an additional variable monitoring on its process.
The converter is powered by a 12 to 45 Vdc voltage, generating a 4-20 mA current channel (according to NAMUR NE43 standard). Its main function is monitoring any variable from another HART® device (independent of its version), configured by user and extern that variable through the current channel.
The DTM Library for HART devices can be found on:
HART
| Power Supply | 12 to 45 Vdc |
| Output Current | 4-20 mA (NAMUR-NE43) Certified HART® Modem |
| Temperature Limits | -10°C to 70°C |
| Process Connection | Panel Rail DIN 43880 |
| Env. Temperature Limits | -40 to 85°C |
| Protection | IP00 / IP66 (Installed) |
| Housing Material | Injected ABS Plastic |
| Dimension / Weight | 76 x 23 x 105 mm / 105 g |
Main benefits:
